RSA cryptografie – VBA-code

Als eerste:

  1. Kopieer de onderstaande code middels Ctrl + C
  2. Druk op de toetscombinatie ALT + F11 om de Visual Basic Editor te openen
  3. Druk op de toetscombinatie ALT + N om het menu Invoegen te openen
  4. Druk op M om een standaard module in te voegen
  5. Daar waar de cursor knippert voeg je de code in middels Ctrl + V
  6. Druk op de toetscombinatie ALT + Q om de Editor af te sluiten en terug te keren naar Excel
Option Explicit

' === MAIN DEMO: RSA with text + worksheet output ===
Public Sub RSAMain()
    Dim e As Long, d As Long, n As Long
    Dim p As Long, q As Long
    Dim msg As String
    Dim blocks As Variant, encBlocks() As Long, decBlocks() As Long
    Dim i As Long
    Dim ws As Worksheet
    Dim blockSize As Long

    ' Choose primes
    p = 7919: q = 1009

    ' Generate keys
    Call GenerateKeys(e, d, n, p, q)
    If e = -1 Or d = -1 Then MsgBox "Key generation failed": Exit Sub

    ' Choose message and block size
    msg = "THE QUICK BROWN FOX JUMPS OVER THE LAZY DOG"
    blockSize = 2   ' group 2 characters per block

    ' Convert to numeric blocks
    blocks = TextToBlocks(msg, blockSize)
    ReDim encBlocks(LBound(blocks) To UBound(blocks))
    ReDim decBlocks(LBound(blocks) To UBound(blocks))

    ' Encrypt each block
    For i = LBound(blocks) To UBound(blocks)
        encBlocks(i) = Encrypt(blocks(i), e, n)
    Next i

    ' Decrypt each block
    For i = LBound(blocks) To UBound(blocks)
        decBlocks(i) = Decrypt(encBlocks(i), d, n)
    Next i

    ' Prepare worksheet
    On Error Resume Next
    Set ws = ThisWorkbook.Sheets("RSA")
    If ws Is Nothing Then
        Set ws = ThisWorkbook.Sheets.Add
        ws.Name = "RSA"
    End If
    On Error GoTo 0
    ws.Cells.Clear

    ' Write keys
    ws.Range("A1").Value = "Choose Primes (p, q)"
    ws.Range("B1").Value = "(" & p & ", " & q & ")"
    ws.Range("A2").Value = "Public Key (e, n)"
    ws.Range("B2").Value = "(" & e & ", " & n & ")"
    ws.Range("A3").Value = "Private Key (d, n)"
    ws.Range("B3").Value = "(" & d & ", " & n & ")"

    ' Write messages
    ws.Range("A5").Value = "Original Message:"
    ws.Range("B5").Value = msg

    ws.Range("A7").Value = "Encrypted Blocks:"
    For i = LBound(encBlocks) To UBound(encBlocks)
        ws.Cells(7, i + 1).Value = encBlocks(i)
    Next i

    ws.Range("A9").Value = "Decrypted Blocks (numbers):"
    For i = LBound(decBlocks) To UBound(decBlocks)
        ws.Cells(9, i + 1).Value = decBlocks(i)
    Next i

    ws.Range("A11").Value = "Decrypted Text:"
    ws.Range("B11").Value = BlocksToText(decBlocks, blockSize)
End Sub


' === Helper functions (same as before) ===
Private Function ModD(ByVal a As Double, ByVal b As Double) As Double
    If b = 0 Then
        ModD = 0
        Exit Function
    End If
    ModD = a - Int(a / b) * b
    If ModD < 0 Then ModD = ModD + b
End Function

Public Function IsPrime(ByVal num As Long) As Boolean
    Dim i As Long
    If num < 2 Then IsPrime = False: Exit Function
    If num = 2 Then IsPrime = True: Exit Function
    If (num Mod 2) = 0 Then IsPrime = False: Exit Function
    For i = 3 To CLng(Sqr(num)) Step 2
        If (num Mod i) = 0 Then IsPrime = False: Exit Function
    Next i
    IsPrime = True
End Function

Public Function PowerMod(ByVal base As Long, ByVal expo As Long, ByVal m As Long) As Long
    Dim res As Double, tBase As Double, e As Long
    res = 1#: tBase = ModD(base, m): e = expo
    While e > 0
        If (e And 1) = 1 Then res = ModD(res * tBase, m)
        tBase = ModD(tBase * tBase, m)
        e = e \ 2
    Wend
    PowerMod = CLng(ModD(res, m))
End Function

Public Function ModInverse(ByVal a As Long, ByVal m As Long) As Long
    Dim m0 As Long, t As Long, q As Long
    Dim x0 As Long, x1 As Long, tmp As Long

    m0 = m
    x0 = 0
    x1 = 1

    If m = 1 Then
        ModInverse = 0
        Exit Function
    End If

    While a > 1
        If m = 0 Then
            ModInverse = -1 ' no inverse
            Exit Function
        End If
        q = a \ m
        tmp = m
        m = a Mod m
        a = tmp
        tmp = x0
        x0 = x1 - q * x0
        x1 = tmp
    Wend

    If x1 < 0 Then x1 = x1 + m0
    ModInverse = x1
End Function

Public Function GCD(ByVal a As Long, ByVal b As Long) As Long
    Dim tmp As Long
    a = Abs(a): b = Abs(b)
    Do While b <> 0
        tmp = a Mod b: a = b: b = tmp
    Loop
    GCD = a
End Function

Public Sub GenerateKeys(ByRef e As Long, ByRef d As Long, ByRef n As Long, ByVal p As Long, ByVal q As Long)
    Dim phi As Long, i As Long, candidates As Variant, cand As Long
    If p <= 1 Or q <= 1 Or Not IsPrime(p) Or Not IsPrime(q) Then e = -1: d = -1: n = 0: Exit Sub
    n = p * q: phi = (p - 1) * (q - 1)
    candidates = Array(3, 17, 65537): e = -1
    For i = LBound(candidates) To UBound(candidates)
        cand = CLng(candidates(i))
        If cand < phi Then If GCD(cand, phi) = 1 Then e = cand: Exit For
    Next i
    If e = -1 Then
        For i = 3 To phi - 1 Step 2
            If GCD(i, phi) = 1 Then e = i: Exit For
        Next i
    End If
    If e = -1 Then d = -1: Exit Sub
    d = ModInverse(e, phi)
End Sub

Public Function Encrypt(ByVal m As Long, ByVal e As Long, ByVal n As Long) As Long
    Encrypt = PowerMod(m, e, n)
End Function

Public Function Decrypt(ByVal C As Long, ByVal d As Long, ByVal n As Long) As Long
    Decrypt = PowerMod(C, d, n)
End Function

' === NEW: Text conversion helpers ===
Private Function TextToNumbers(msg As String) As Variant
    Dim arr() As Long, i As Long
    ReDim arr(1 To Len(msg))
    For i = 1 To Len(msg)
        arr(i) = Asc(Mid$(msg, i, 1)) ' each char ? ASCII code
    Next i
    TextToNumbers = arr
End Function

Private Function NumbersToText(nums As Variant) As String
    Dim s As String, i As Long
    For i = LBound(nums) To UBound(nums)
        s = s & Chr$(nums(i))
    Next i
    NumbersToText = s
End Function

' === Text conversion helpers with block support ===

' Convert text into numeric blocks of size blockSize characters
Private Function TextToBlocks(msg As String, blockSize As Long) As Variant
    Dim blocks() As Long, i As Long, j As Long
    Dim blockValue As Long, charCode As Long

    Dim numBlocks As Long
    numBlocks = Application.Ceiling(Len(msg) / blockSize, 1)
    ReDim blocks(1 To numBlocks)

    For i = 1 To numBlocks
        blockValue = 0
        For j = 1 To blockSize
            If ((i - 1) * blockSize + j) <= Len(msg) Then
                charCode = Asc(Mid$(msg, (i - 1) * blockSize + j, 1))
            Else
                charCode = 0 ' padding if not divisible
            End If
            ' Shift and combine into block (base 256)
            blockValue = blockValue * 256 + charCode
        Next j
        blocks(i) = blockValue
    Next i

    TextToBlocks = blocks
End Function

' Convert numeric blocks back into text
Private Function BlocksToText(blocks As Variant, blockSize As Long) As String
    Dim msg As String, i As Long, j As Long
    Dim blockValue As Long, charCode As Long

    msg = ""
    For i = LBound(blocks) To UBound(blocks)
        blockValue = blocks(i)
        ' Extract chars in reverse order
        Dim tmpChars() As Long
        ReDim tmpChars(1 To blockSize)
        For j = blockSize To 1 Step -1
            charCode = blockValue Mod 256
            tmpChars(j) = charCode
            blockValue = blockValue \ 256
        Next j
        For j = 1 To blockSize
            If tmpChars(j) <> 0 Then
                msg = msg & Chr$(tmpChars(j))
            End If
        Next j
    Next i

    BlocksToText = msg
End Function

THE QUICK BROWN FOX JUMPS OVER THE LAZY DOG” is een pangram, een zin die alle letters van het alfabet bevat, en wordt vaak gebruikt voor het testen van lettertypen en toetsenborden. Deze zin gaan we versleutelen en ontsleutelen middels het RSA algoritme.

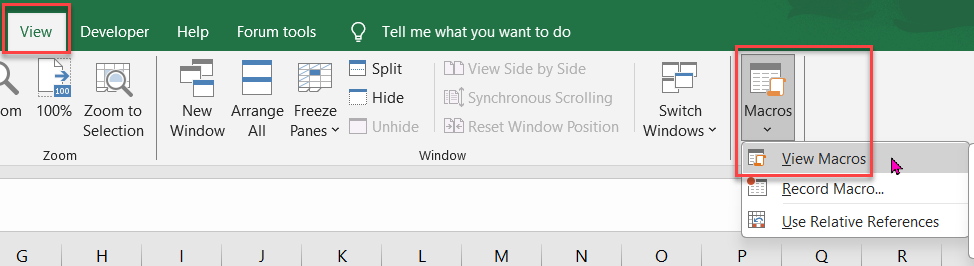

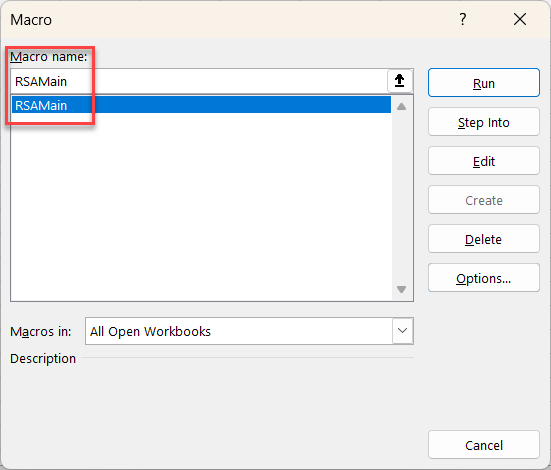

Druk op de toetscombinatie ALT + F8 om de Macro Dialoog te tonen. Dubbelklik op de macro naam, RSAMain om te starten. Of kies voor View | Macro | View Macro. Dan zie je de macro naam staan: RSAMain. Klik op Run. De code voegt een nieuw werkblad in met de naam RSA met daarop een samenvatting van wat gebeurd is.

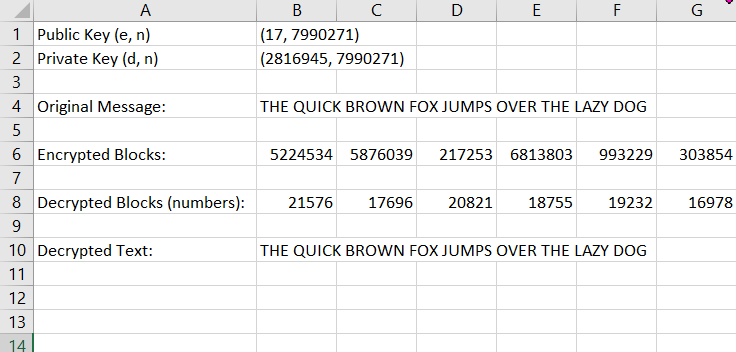

Samenvatting op werkblad:
